Our compact roller garage doors have been developed for garages where there is limited space above the opening. A wide range of compact roller shutter sizes can be accommodated up to 3000mm wide and up to 2150mm in height. Each is supplied with two key fob transmitters, a single channel receiver with built-in courtesy light and a bottom slat sensor.
A secure stainless steel locking mechanism automatically locks the garage door providing greater strength than less robust company doors using plastic locking arms. The door operation is powered by a 240V Somfy tubular drive motor. In the event of power loss an internal manual override facility is supplied complete with a detachable winding handle.
These roller garage doors are CE marked for safety and is backed by a 7 year motor warranty and 5 year parts guarantee. We can supply doors for your own DIY installation, each door set comes with comprehensive fitting istructions, or using our UK network of professional fitters, contact us for details.
We are never knowingly beaten on price! View our prices below and if you see a better price for the same roller shutter garage doors showing elsewhere then please ring us - we are confident we can beat any advertised price!
Blending the convenience of powered operation with smooth, vertical opening you can safely park inches from the door. Ideal for larger vehicles such as 4x4s and people carriers. It does not need the external space for opening that traditional up and over doors require.
The Compact utilises an aluminium slat insulated with a CFC free foam core, for thermal insulation and noise reduction, which is narrower than those supplied with normal doors (see comparison on right). This allows a tighter, smaller coil which needs just 205mm (8") of headroom. The rail guides are also smaller at 66mm so they can be fitted into a smaller space. The curtain is held in place by a high performance webbing that is unaffected by extremes of weather.
Although slimmer than standard doors these Compact roller shutter garage doors offer excellent security against intruders. Combining a sturdy locking system, rolling code remote control technology and tough extruded aluminium which has been tested to wind resistance equivalent to 59mph (Force 10 Storm).
Automatic anti-lift locking, a strong extruded top slat and remote units featuring rolling-code technology ensure effective attack resistance by would be intruders. Each door is made to measure to your individual requirements ensuring a seemless fit. The Compact is a relatively easy diy electric garage door for DIY fitting or we can install for you with our UK wide fitting service. You can choose from a range of low maintenance colours as standard, designed to compliment the look of your home (see below).
You can download our latest roller garage doors brochure here which includes the Compact door
You can view our measuring guide on our About Roller Garage Doors page.
Our garage doors come in a choice of low maintenance finishes as standard. Please bear in mind colours may reproduce differently depending on your device.
Open our garage door designer >
Our prices are among the most competitive in the business. Select nearest height and width to our price chart. For sizes in between take the nearest higher price, for example 2100 wide by 2015 high in a standard colour = £1173 + VAT . If your size requirements are different to below we can customise to your exact measurements. All prices are in pounds.

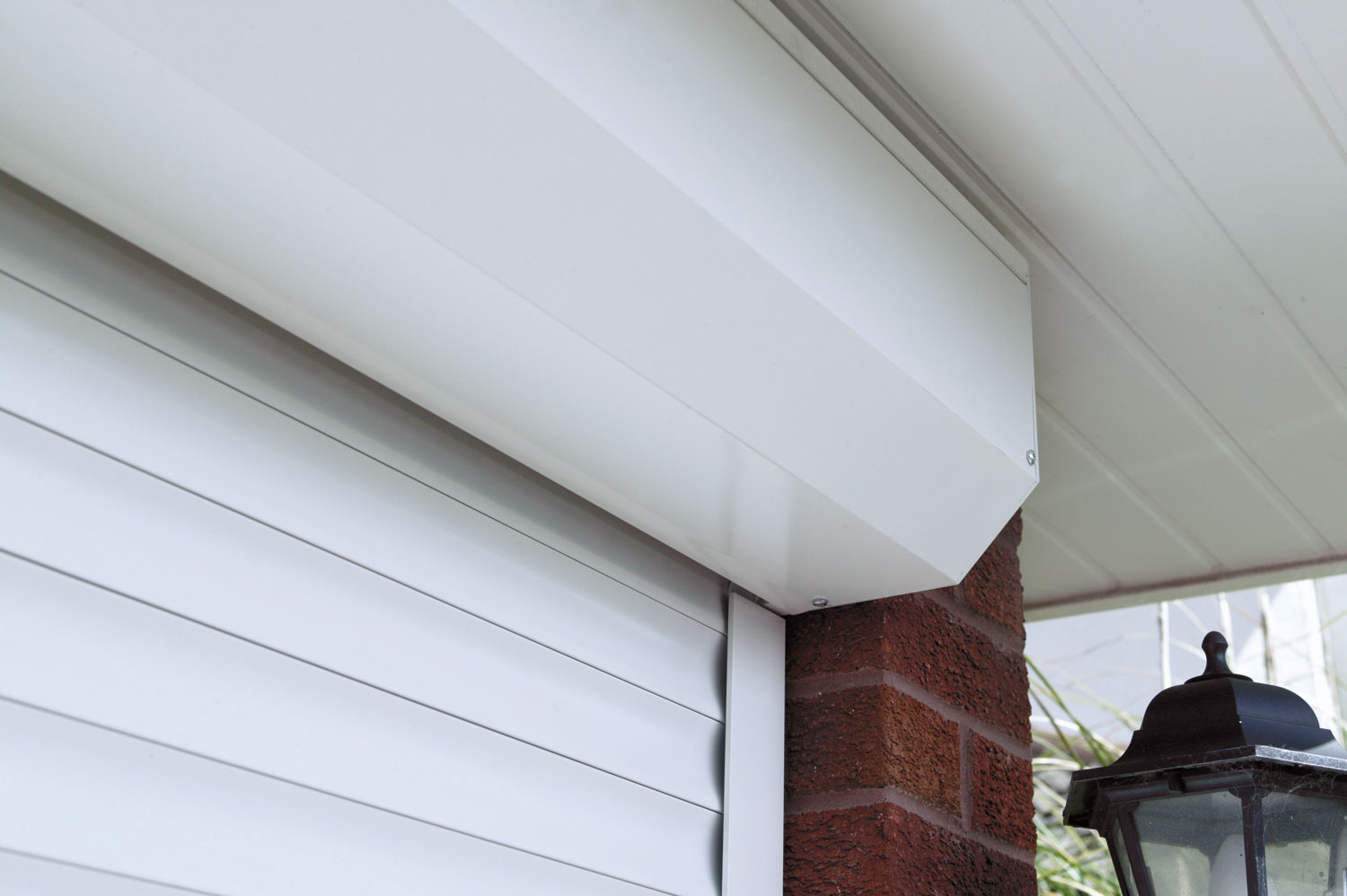

The Top Coils are 205mm so the boxhead end plate requires only 205mm headroom. Overall Guide Width includes both Guide Rails. All Guide Rails are 60mm wide. See our About Roller Garage Doors for further information on top boxes.
Standard Powder Coated Colours (Burgundy, Navy Blue, Light Beige, Fir Green, Black, White, Silver, Antracite, Ivory, Light Grey, Brown and Chartwell Green):
Guide Height measurements down left, Overall Guide Width measurements across the page (mm). Prices in pounds.
HALF TOP BOX| mm | 2000 | 2500 | 3000 | Total Height |
| 1900 | 1100 | 1162 | 1257 | 2105mm |
| 2150 | 1117 | 1173 | 1277 | 2355mm |
| mm | 2000 | 2500 | 3000 | Total Height |
| 1900 | 1127 | 1185 | 1275 | 2105mm |
| 2150 | 1142 | 1202 | 1294 | 2355mm |
Foiled Woodgrain Curtain Colours (Rosewood, Mahogany, Golden Oak - please note that guides and top boxes are not available in foiled woodgrain finish):
HALF TOP BOX
| mm | 2000 | 2500 | 3000 | Total Height |
| 1900 | 1209 | 1299 | 1423 | 2105mm |
| 2150 | 1239 | 1334 | 1462 | 2355mm |
| mm | 2000 | 2500 | 3000 | Total Height |
| 1900 | 1230 | 1316 | 1432 | 2105mm |
| 2150 | 1257 | 1352 | 1470 | 2355mm |
